- Air Motors and Grinding Spindles
Air Motors and Grinding Spindles
MD's air spindles and air motors work quickly and accurately when deburring, milling, grinding, drilling, brushing or polishing.
Take advantage of our no obligation motor consultation, we are there to advise you in detail on the design of new projects. We also manufacture special solutions or individual components such as planetary gears, motor blocks etc. for your air motors and spindles. We can make the correct modifications to find the solution to your application. This can be accomplished by us in small or large batch sizes in a very short time.
-

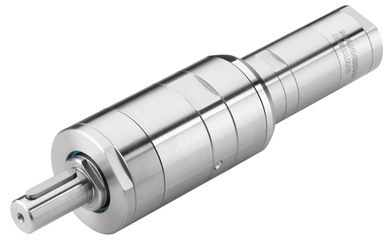

MUD 23-25 F100
Power0.23 kWSpeed under load25 min⁻¹Torque88.00 NmMaximum Torque176.00 NmFree speed50 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-30
Power0.23 kWSpeed under load30 min⁻¹Torque74.00 NmMaximum Torque147.00 NmFree speed60 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-30 A17
Power0.23 kWSpeed under load30 min⁻¹Maximum Torque30.00 NmFree speed30 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-30 F100
Power0.23 kWSpeed under load30 min⁻¹Torque74.00 NmMaximum Torque147.00 NmFree speed60 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 23-30 F54
Power0.23 kWSpeed under load30 min⁻¹Maximum Torque30.00 NmFree speed30 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-37 A17
Power0.23 kWSpeed under load37 min⁻¹Maximum Torque30.00 NmFree speed37 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-37 F54
Power0.23 kWSpeed under load37 min⁻¹Maximum Torque30.00 NmFree speed37 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-40
Power0.23 kWSpeed under load40 min⁻¹Torque55.00 NmMaximum Torque110.00 NmFree speed80 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-40 F100
Power0.23 kWSpeed under load40 min⁻¹Torque55.00 NmMaximum Torque110.00 NmFree speed80 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-435
Power0.23 kWSpeed under load435 min⁻¹Torque5.00 NmMaximum Torque10.00 NmFree speed870 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-435 A17
Power0.23 kWSpeed under load435 min⁻¹Torque5.00 NmMaximum Torque10.00 NmFree speed870 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-435 F54
Power0.23 kWSpeed under load435 min⁻¹Torque5.00 NmMaximum Torque10.00 NmFree speed870 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-5 A17
Power0.23 kWSpeed under load5 min⁻¹Maximum Torque30.00 NmFree speed5 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-5 F54
Power0.23 kWSpeed under load5 min⁻¹Maximum Torque30.00 NmFree speed5 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-55
Power0.23 kWSpeed under load55 min⁻¹Torque40.00 NmMaximum Torque80.00 NmFree speed110 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-55 F100
Power0.23 kWSpeed under load55 min⁻¹Torque40.00 NmMaximum Torque80.00 NmFree speed110 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 23-65 A17
Power0.23 kWTorque65.00 NmMaximum Torque30.00 NmFree speed65 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-65 F54
Power0.23 kWTorque65.00 NmMaximum Torque30.00 NmFree speed65 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -

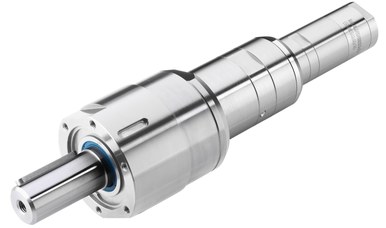

MUD 23-7
Power0.23 kWSpeed under load7 min⁻¹Torque313.00 NmMaximum Torque626.00 NmFree speed14 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 23-70
Power0.23 kWSpeed under load70 min⁻¹Torque32.00 NmMaximum Torque63.00 NmFree speed140 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-70 F100
Power0.23 kWSpeed under load70 min⁻¹Torque32.00 NmMaximum Torque63.00 NmFree speed140 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-7000
Power0.23 kWSpeed under load7000 min⁻¹Torque0.31 NmMaximum Torque0.62 NmFree speed14000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-7000 A17
Power0.23 kWSpeed under load7000 min⁻¹Torque0.31 NmMaximum Torque0.62 NmFree speed14000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-85 A17
Power0.23 kWSpeed under load85 min⁻¹Maximum Torque30.00 NmFree speed85 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-85 F54
Power0.23 kWSpeed under load85 min⁻¹Maximum Torque30.00 NmFree speed85 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-880
Power0.23 kWSpeed under load880 min⁻¹Torque2.50 NmMaximum Torque5.00 NmFree speed1760 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 23-880 A17
Power0.23 kWSpeed under load880 min⁻¹Torque2.50 NmMaximum Torque5.00 NmFree speed1760 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 23-880 F54
Power0.23 kWSpeed under load880 min⁻¹Torque2.50 NmMaximum Torque5.00 NmFree speed1760 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-14
Power0.5 kWSpeed under load14 min⁻¹Torque341.00 NmMaximum Torque682.00 NmFree speed28 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-1500
Power0.5 kWSpeed under load1500 min⁻¹Torque3.20 NmMaximum Torque6.40 NmFree speed3000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-1500 F77
Power0.5 kWSpeed under load1500 min⁻¹Torque3.20 NmMaximum Torque6.40 NmFree speed3000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-1700
Power0.5 kWSpeed under load1700 min⁻¹Torque2.80 NmMaximum Torque5.60 NmFree speed3400 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-1700 F77
Power0.5 kWSpeed under load1700 min⁻¹Torque2.80 NmMaximum Torque5.60 NmFree speed3400 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-20
Power0.5 kWSpeed under load20 min⁻¹Torque238.00 NmMaximum Torque476.00 NmFree speed40 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 40-220
Power0.5 kWSpeed under load220 min⁻¹Torque22.00 NmMaximum Torque43.00 NmFree speed440 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-220 F77
Power0.5 kWSpeed under load220 min⁻¹Torque22.00 NmMaximum Torque43.00 NmFree speed440 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-2400
Power0.5 kWSpeed under load2400 min⁻¹Torque2.00 NmMaximum Torque4.00 NmFree speed4800 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-2400 F77
Power0.5 kWSpeed under load2400 min⁻¹Torque2.00 NmMaximum Torque4.00 NmFree speed4800 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-265
Power0.5 kWSpeed under load265 min⁻¹Torque18.00 NmMaximum Torque36.00 NmFree speed530 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-265 F77
Power0.5 kWSpeed under load265 min⁻¹Torque18.00 NmMaximum Torque36.00 NmFree speed530 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-355
Power0.5 kWSpeed under load355 min⁻¹Torque13.00 NmMaximum Torque27.00 NmFree speed710 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-355 F77
Power0.5 kWSpeed under load355 min⁻¹Torque13.00 NmMaximum Torque27.00 NmFree speed710 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-40
Power0.5 kWSpeed under load40 min⁻¹Torque119.00 NmMaximum Torque238.00 NmFree speed80 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-40 F100
Power0.5 kWSpeed under load40 min⁻¹Torque119.00 NmMaximum Torque238.00 NmFree speed80 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-430
Power0.5 kWSpeed under load430 min⁻¹Torque11.00 NmMaximum Torque22.00 NmFree speed860 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-430 F77
Power0.5 kWSpeed under load430 min⁻¹Torque11.00 NmMaximum Torque22.00 NmFree speed860 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-575
Power0.5 kWSpeed under load575 min⁻¹Torque8.30 NmMaximum Torque17.00 NmFree speed1150 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-575 F77
Power0.5 kWSpeed under load575 min⁻¹Torque8.30 NmMaximum Torque17.00 NmFree speed1150 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 40-65
Power0.5 kWSpeed under load65 min⁻¹Torque73.00 NmMaximum Torque146.00 NmFree speed130 min⁻¹Direction of rotationreversibleResistant to stalling< 10 items -
MUD 40-65 F100
Power0.5 kWSpeed under load65 min⁻¹Torque73.00 NmMaximum Torque146.00 NmFree speed130 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-90
Power0.5 kWSpeed under load90 min⁻¹Torque53.00 NmMaximum Torque106.00 NmFree speed180 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-90 F100
Power0.5 kWSpeed under load90 min⁻¹Torque53.00 NmMaximum Torque106.00 NmFree speed180 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-9500
Power0.5 kWSpeed under load9500 min⁻¹Torque0.50 NmMaximum Torque1.00 NmFree speed19000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks -
MUD 40-9500 F77
Power0.5 kWSpeed under load9500 min⁻¹Torque0.50 NmMaximum Torque1.00 NmFree speed19000 min⁻¹Direction of rotationreversibleResistant to stalling4 weeks
